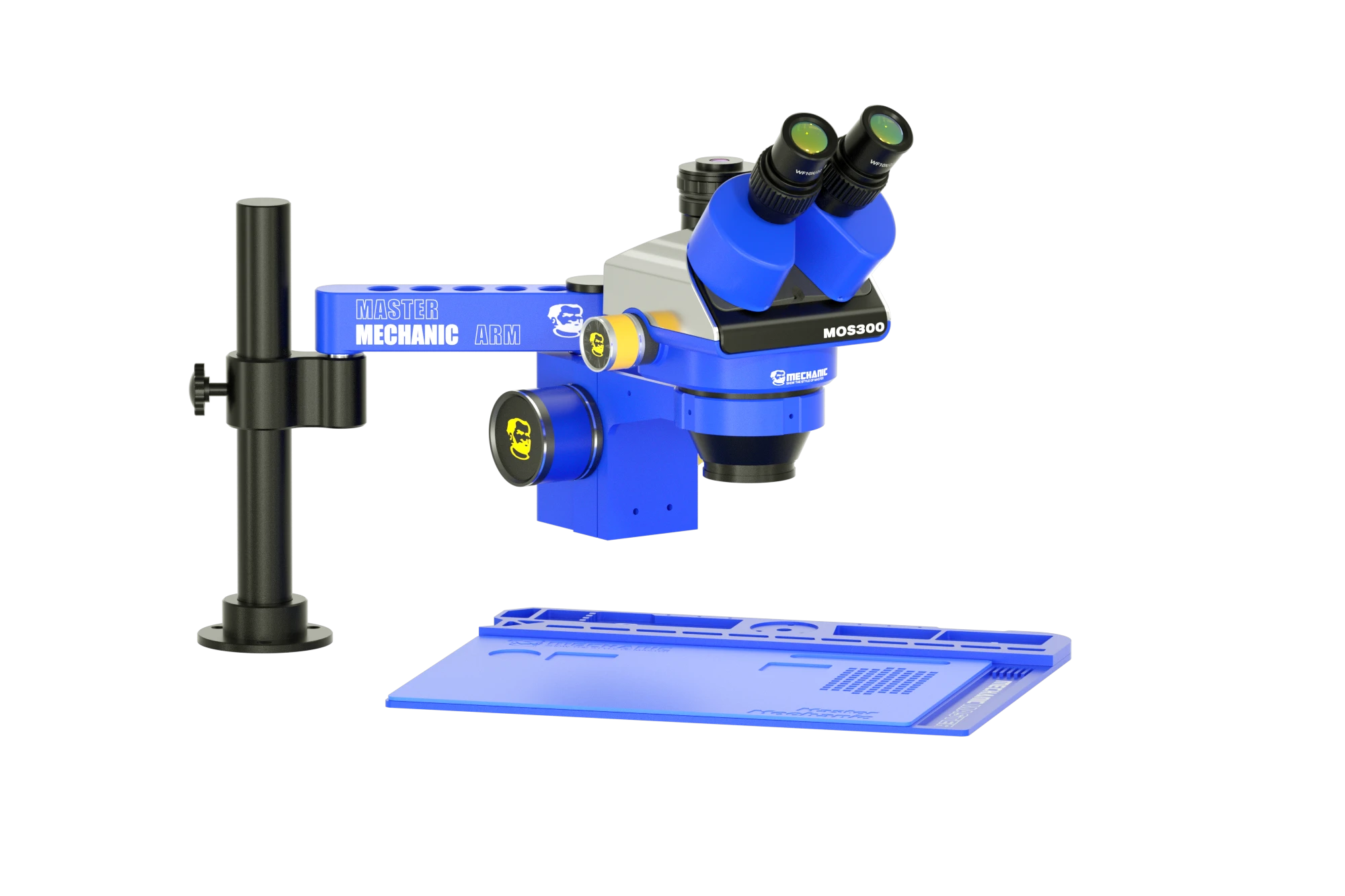

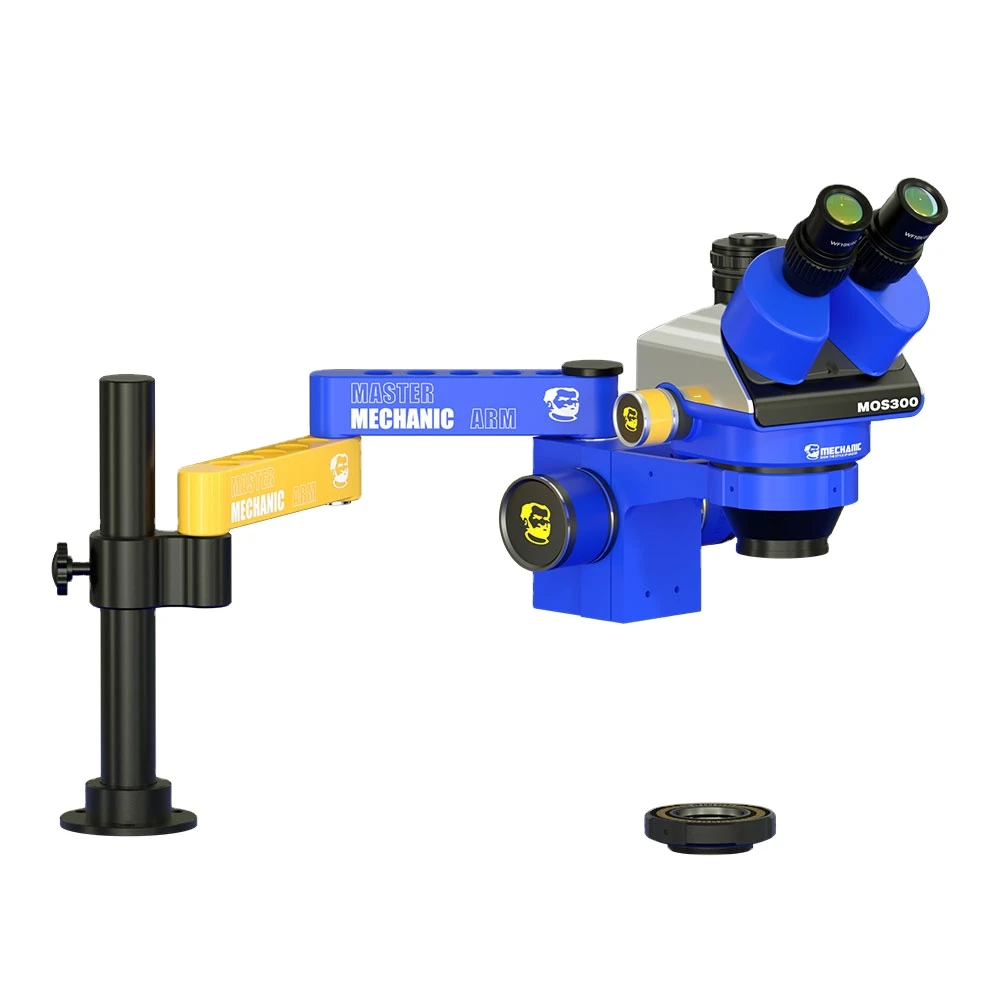

MECHANIC MOS300-M3 Trinocular Stereo Microscope for PCB Repair

0 Orders 0 Wish listed

220.00JD

Qty

Total price:

220.00JD

Overview
Reviews

Detail Description

Trinocular Stereo Microscope: Professional microscope designed for advanced smartphone PCB repair, micro-soldering, and precision electronics inspection.
Dedicated Camera Photoport: Integrated top photoport supports compatible digital HDMI microscope cameras for simultaneous imaging and repair observation.
Live Digital Imaging: Allows technicians to connect a compatible camera for displaying microscope work on an external monitor.
Repair Video Recording: Camera-ready trinocular design supports recording detailed repair procedures and component-level diagnostics.
Live-Streaming Support: Suitable for broadcasting microscope repair work, technical demonstrations, training, and remote diagnostic viewing with compatible equipment.
3D Stereo Viewing: Maintains stereoscopic depth perception through the eyepieces for accurate handling of small PCB components.
Wide-Field Eyepieces: High-eyepoint wide-field optics provide a broad viewing area for dense motherboard layouts.
Anti-Reflective Optics: Optical treatment helps reduce distracting reflections and improve visual comfort during detailed inspection.
Continuous Zoom System: Smooth focal zoom allows technicians to adjust magnification according to different PCB inspection and repair tasks.
PCB Trace Inspection: Suitable for locating damaged copper traces, inspecting solder joints, and examining fine motherboard circuitry.
BGA Repair Support: Provides detailed optical observation for BGA alignment, soldering, reballing, and chip-level repair.
M3 Heavy-Duty Metal Base: Oversized metal baseplate provides a stable working foundation for microscope-assisted repair.

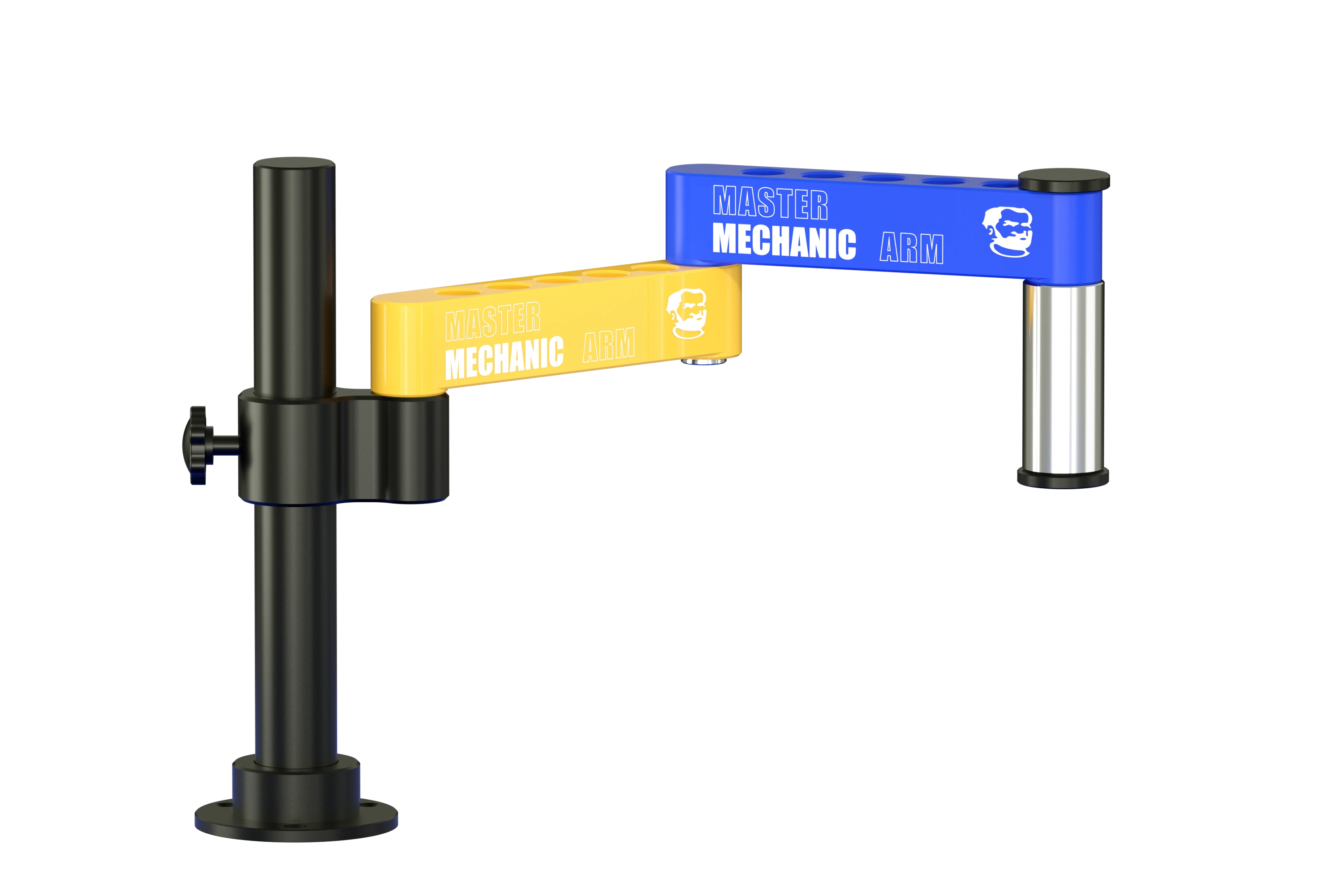

Anti-Vibration Structure: Rigid M3 base and vertical mechanical column help minimize unwanted movement during precision work.
Stable Vertical Column: Strong support structure provides controlled microscope positioning over the repair area.
ESD-Safe Design: Designed for professional electronics environments involving electrostatic-sensitive PCBs and components.
Professional Repair Applications: Suitable for PCB diagnostics, motherboard repair, IC inspection, Jumper Wire work, BGA reballing, component replacement, and precision micro-soldering.
