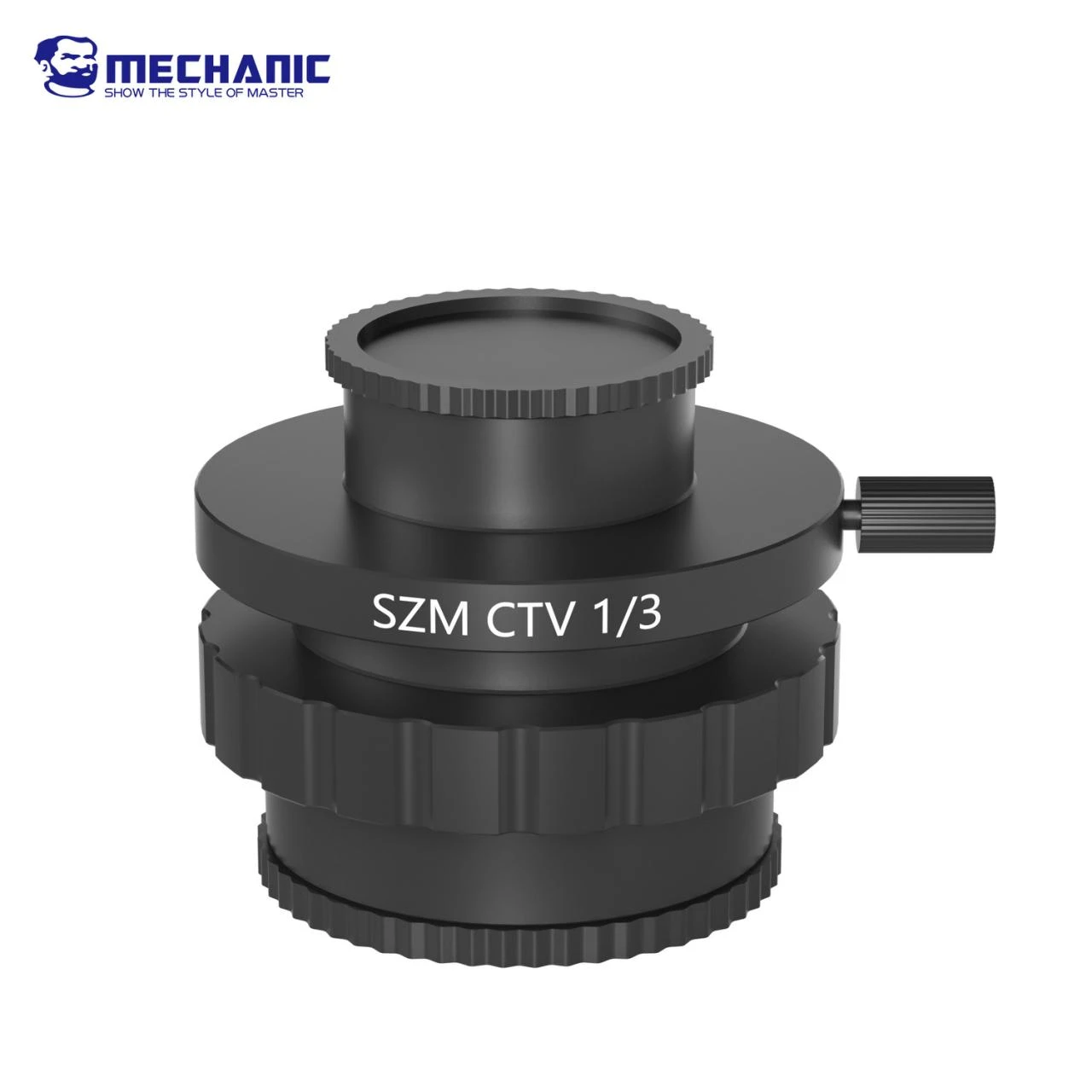

MECHANIC F5 MCNCTV1/3 0.33X Electronic Eyepiece Camera Adapter for Microscope

0 Orders 0 Wish listed

20.00JD

Qty

Total price:

20.00JD

Overview
Reviews

Detail Description

0.33X Camera Adapter: Professional optical adapter designed to connect compatible digital microscope cameras with trinocular repair microscopes.
C-Mount Connection: Uses a standard industrial C-Mount interface for secure installation with compatible digital microscope cameras.
MCNCTV1/3 Optical Ratio: Uses a 1/3 scale factor equivalent to approximately 0.33X to adapt the microscope image for digital camera viewing.
Expanded Field of View: 0.33X reduction optics help provide a wider visible Field of View (FOV) on compatible camera systems.
Reduced Edge Clipping: Optical configuration helps minimize image cropping around the edges when transferring the microscope view to an external display.
Reduced Peripheral Distortion: Designed to improve image coverage and reduce unwanted edge distortion during digital inspection.
Improved Sensor Coverage: Helps match the microscope optical image more effectively to the camera sensor for wider digital viewing.
Trinocular Microscope Integration: Designed to bridge the trinocular photoport and compatible digital microscope camera.
PCB Inspection Support: Suitable for digital viewing of copper traces, solder joints, ICs, BGA areas, and densely populated motherboard sections.
Multi-Coated Optical Glass: Optical lens system uses multi-coated glass to support efficient light transmission and clearer image reproduction.
Reduced Optical Aberration: Lens configuration helps limit unwanted optical aberrations during microscope camera viewing.
Optimized Ring-Light Viewing: Optical coatings help reduce distracting reflections under microscope ring-light illumination.
High-Definition Optical Coupling: Designed to preserve fine structural detail when transferring microscope imagery to compatible digital cameras.
Metal Chassis: Durable metallic housing provides stable support and protection for the internal optical elements.
Wear-Resistant Construction: Built for repeated installation and professional use in electronics repair workstations.
Secure Camera Installation: Threaded C-Mount design helps maintain stable alignment between the microscope and compatible camera.
Professional Repair Applications: Suitable for PCB inspection, micro-soldering, BGA work, IC diagnostics, repair recording, training, and digital microscope imaging.
